This fully self-contained pressure test and calibration system combines pressure generation, signal
measurement and loop power to provide all the convenience of the Druck DPI 610/615 and yet it’s
half the size, twice as accurate and easier to use.

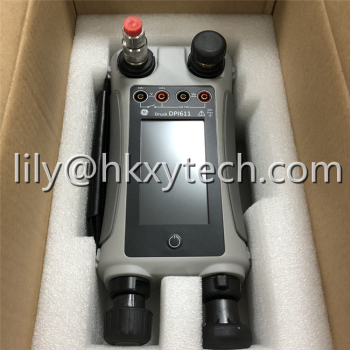

DPI 611 hand-held pressure calibrator
The DPI 611 is the fourth generation in the DPI 600 family, which was first introduced in 1984.
The DPI 600 family revolutionized test and calibration by providing all the tools for pressure generation and signal measurement in selfcontained portable packages. The DPI 600 soon became the industry workhorse and today it is simply known as the “Druck.”
Building on the technical legacy and more than three decades of experience in pressure measurement and calibration, the DPI 611 provides
all the convenience and reliability of a true “Druck,”yet offers twice the performance in a product half the size.
• 50% smaller and 33% lighter than the DPI 610
• Generates 0 to 20 bar/300 psi in less than 30 seconds
• Creates 95% vacuum
• Pressure measurement is twice as accurate
• Three times better electrical accuracy
• Simplified touch screen interface with application DASHBOARD, quick TASK selection and FAVOURITES storage
• Fast, three touch set-up for any application
• Calculates PASS/FAIL errors, documents results and interfaces with calibration software
Ordering Information
Please use the following part numbers when ordering:
DPI611-05G for -1 to 1 bar / -14.5 to 15 psi gauge range
DPI611-07G for -1 to 2 bar / -14.5 to 30 psi gauge range
DPI611-10G for -1 to 7 bar / -14.5 to 100 psi gauge range
DPI611-11G for -1 to 10 bar / -14.5 to 150 psi gauge range
DPI611-13G for -1 to 20 bar / -14.5 to 300 psi gauge range
Please order accessories by part number as separate line items.
Each DPI 611 is supplied with a set of alkaline batteries, hand strap, test leads, G1/8 female and 1/8 NPT female adaptors, calibration certificate, quick user guide and an electronic copy of the user manual stored in memory on the instrument.
