testo 175 H1 Temperature and humidity data logger
Product Description
The testo 175 H1 data logger measures, monitors and logs the temperature and relative humidity in buildings and closed rooms. The logger comes with an external humidity sensor (stub) for shorter reaction times and a lock to prevent it from being easily stolen or tampered with.
In addition to the current temperature and humidity values, the logger can also log and display dew point values. Other information including adjustable threshold values, breached thresholds and remaining battery power can also be read off the large, clear display.
Security and comfort on all levels
The testo 175 H1 ensures a high level of data security and reliable measurements based on leading-edge technology. The logger has a super-size memory that can save up to 1 million readings and an extended battery life of up to 3 years. This gives you the freedom to read out the data at longer intervals, even when the measuring cycles are shorter. The triple AAA batteries included in the scope of supply can be easily replaced by the user.
Programming and Analyzing Your Data Loggers
Choose 1 of 3 software versions to program or read out your loggers or to analyze the measuring data you have obtained on your PC:
· Software ComSoft Basic – included – allows you to program your logger and analyze the data quickly and easily
· Software ComSoft Professional – optional – provides you with additional possibilities and a more detailed analysis of the temperature and humidity values
· Software ComSoft CFR 21 Part 11 – optional – ideal for the special demands of the pharmaceutical sector in compliance with 21 CFR Part 11
PLEASE NOTE: You will need a USB cable (not included in scope of supply) to program your data logger. The data can be transferred to your PC either via USB cable or SD card. Both are optionally available as accessories which can be ordered together with your testo 175 H1.
Areas of application for the testo 175 H1 data logger

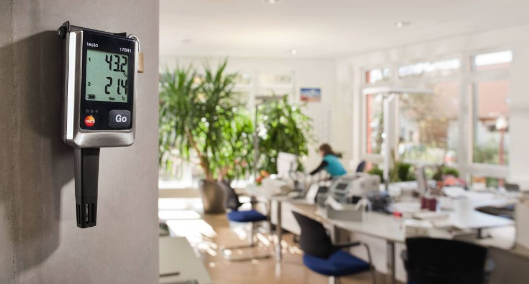

The testo 175 H1 professional data logger is ideal for round-the–clock monitoring of temperature and humidity values in closed rooms. The 175 H1 can monitor the indoor climate in buildings, storage facilities and archives and help create a comfortable climate in the workplace. The logger’s external humidity sensor (stub) is connected directly to the housing for shorter reaction times.
What’s included
testo 175 H1 2-channel data logger for temperature and humidity measurements, external humidity sensor (NTC/ capacitive humidity sensor), wall bracket, lock, batteries, calibration protocol.
Monitoring and documentation of building air conditioning
Testo Data logger
contact us
Tel:+86 027-85880977
Email: vicky@hkxytech.com
Product Description
The testo 175 H1 data logger measures, monitors and logs the temperature and relative humidity in buildings and closed rooms. The logger comes with an external humidity sensor (stub) for shorter reaction times and a lock to prevent it from being easily stolen or tampered with.
In addition to the current temperature and humidity values, the logger can also log and display dew point values. Other information including adjustable threshold values, breached thresholds and remaining battery power can also be read off the large, clear display.
Security and comfort on all levels
The testo 175 H1 ensures a high level of data security and reliable measurements based on leading-edge technology. The logger has a super-size memory that can save up to 1 million readings and an extended battery life of up to 3 years. This gives you the freedom to read out the data at longer intervals, even when the measuring cycles are shorter. The triple AAA batteries included in the scope of supply can be easily replaced by the user.
Programming and Analyzing Your Data Loggers
Choose 1 of 3 software versions to program or read out your loggers or to analyze the measuring data you have obtained on your PC:
· Software ComSoft Basic – included – allows you to program your logger and analyze the data quickly and easily
· Software ComSoft Professional – optional – provides you with additional possibilities and a more detailed analysis of the temperature and humidity values
· Software ComSoft CFR 21 Part 11 – optional – ideal for the special demands of the pharmaceutical sector in compliance with 21 CFR Part 11
PLEASE NOTE: You will need a USB cable (not included in scope of supply) to program your data logger. The data can be transferred to your PC either via USB cable or SD card. Both are optionally available as accessories which can be ordered together with your testo 175 H1.
Areas of application for the testo 175 H1 data logger
The testo 175 H1 professional data logger is ideal for round-the–clock monitoring of temperature and humidity values in closed rooms. The 175 H1 can monitor the indoor climate in buildings, storage facilities and archives and help create a comfortable climate in the workplace. The logger’s external humidity sensor (stub) is connected directly to the housing for shorter reaction times.
What’s included
testo 175 H1 2-channel data logger for temperature and humidity measurements, external humidity sensor (NTC/ capacitive humidity sensor), wall bracket, lock, batteries, calibration protocol.
Monitoring and documentation of building air conditioning
Temperature and relative humidity are crucial factors in assessing air quality and levels of comfort in indoor spaces, e.g. in workplaces. With the aid of data loggers, this data can be permanently monitored and documented.
They are also excellently suited to the monitoring of ventilation systems or for assessing existing building moisture.
With the use of special software, the measurement configurations can be customised and recorded measurement data can be both analysed and stored.
Testo Data logger
| Model | Description |
| testo 175 H1 | Temperature and humidity data logger |
| testo 174 H | Temperature and humidity mini data logger |
| testo 175 T3 | Temperature logger |
| testo 174 T | Mini temperature data logger |
| testo 174 H set | Mini data logger for temperature and humidity in a set |
| testo 176 T4 | Temperature data logger |
| testo 175 T1 | Temperature data logger |
| testo 175 T2 | Temperature data logger |
| testo 176 T2 | Temperature logger |
| testo 174 T set | Mini data logger for temperature in a set |
| testo 184 T3 | temperature data loggers |
| testo 184 H1 | USB data logger for humidity and temperature |
| testo 175 T1 set | temperature logger set |
| testo 176 H1 | Temperature and humidity data logger |
| testo 176 P1 | Absolute pressure, temperature and humidity data logger |
| testo 184 G1 | Shock, humidity and temperature data logger for transport monitoring |
| testo 184 T4 | USB data logger for temperatures up to -80 °C |
