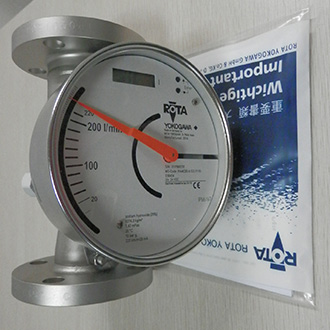

Yokogawa RAMC Variable Area Flow Meter RAMC05-D4SS-71S5-E904

description:Yokogawa RAMC Variable Area Flow Meter RAMC05-D4SS-71S5-E9042...
BASIC INFO
Yokogawa RAMC Variable Area Flow Meter

Product Details


Place of origin:Japan
Brand Name:Yokogawa


Product Description

The RAMC combines all the advantages of the variable area principle with robust design, reliable measurement, with or without power, HART® or Profibus PA, culminating in a truly universal flowmeter for gases, liquids and steam applications.


FEATURES
• Different process connections like flanges according to
EN and ASME
• All wetted parts in stainless steel or PTFE
• Maximum flow 0.025 - 130 m³/h water resp.
0.75 - 1400 m³/h air (20 °C/ 1.013 bar abs)
• Measuring accuracy acc. Directive VDI/VDE 3513 sheet 2
(qG=50 %)
• Float damping to avoid float bouncing with gas applications
• Optional heat tracing (with steam or fluid heat carrier)
• Indicator in stainless steel, aluminium, protection class IP66/67
• Local indicator without additional power supply
• Microprocessor controlled transmitter with 24 V, 115 V
or 230 V power supply
• Intrinsically safe version (Ex-i): ATEX, IECEx, FM (US/C),
NEPSI, PESO, EAC, INMETRO
• Flame proof version (Ex-d): ATEX, IECEx, NEPSI, PESO,
KOSHA, EAC, TS
• Dust explosion proof: ATEX, IECEx, NEPSI, PESO, KOSHA
• Ex for non- electrical RAMC: ATEX, EAC
• FMEDA report available for SIL application
• Limit switches, also available as “Fail Safe” version




Ordering Examples:

ramc01
ramc23
ramc02
ramc03
ramc04
ramc05
ramc06
ramc08
ramc09
ramc10
ramc12
ramc15
ramcnn

RAMC05-D4SS-71S5- E90424 RAMC05-D4SS-72M5-E90424
RAMC06-D4SS-72S5-H90424        RAMC05-D4SS-71L5-E90424
RAMC02-D4SS-64V2-H90424       RAMC10-A2PF-7710-H90434/KS1/BG
RAMC05-D4SS-72M5-H90424     RAMC04-A2SS-64V2-T91NNN
RAMC02-A2SS-43S0-H91424 RAMC04-A2SS-64S2-H91424
RAKD02-A2SS-31NNN-T80NNN RAKD01-A2SS-34NNN-T80NNN
RAMC04-A2SS-64V2-T91NNN RAKD02-A2SS-31NNN-T80NNN
RAKD02-D4SS-34NNN-E80424 RAKD02-D4SS-31NNN-E80424




Packaging & Delivery

Packaging details:in carton or according to custom's service
Delivery Time:8-10 weeks
